The TruPunch 5000 sets new standards for productivity, process reliability, and flexibility. Backlash-free drives enable the highest axis acceleration, and the high rotation speed of the C axis enables extremely fast tapping, as well as the productive processing of complex contours. Due to the powerful hydraulic drive you can punch with up to 1,600 strokes per minute and mark parts with 2,800 strokes per minute. Intelligent automation components and smart functions increase your productivity and process reliability
Punch quickly and mark parts with 2,800 strokes/min: The TruPunch 5000 sets new standards for productivity.
Highest part quality
The active die ensures low-scratch parts.
Increased productivity due to automation
From material handling to tool automation – the machine will do everything for you.
Fast tool change

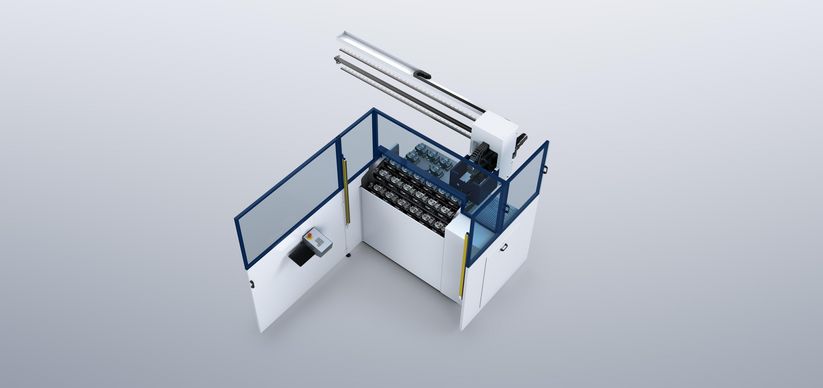

The ToolMaster Linear for up to 90 tools guarantees a fast tool change.
Gentle processing
Retractable clamps ensure the highest part quality and precision.
Technical data
Equipment
Table equipment
Ball tables or brush tables are available for gentle material handling.
Active die
The descending die enables scratch-free punching and forming processes and prevents the risk of things getting caught.
Integrated flattening
During the punching of sheet metal, compression and tensile stresses are placed on the workpiece which can cause sheet deformation. The "integrated flattening" machine function, and the corresponding tool, make it possible to even out surface irregularities during the punching process itself.
Repositioning cylinder
The repositioning cylinder clamps the sheet while the clamps open for repositioning.
Efficiency
Retractable clamps
You can work efficiently using the retractable clamps: They facilitate processing even in the clamp dead area.
Skeleton-free
TRUMPF is the first manufacturer worldwide to offer punching machines that feature skeleton-free processing. This innovation saves material and increases process safety.
Process reliability
Smart punch monitoring
Before the tool change, smart punch monitoring checks whether a hole was actually punched into the sheet. In this way, the machine detects at an early stage when punches are broken, and can pass this information on to the operator.
Smart load
Smart load supports sheet alignment on the machine. A sensor in the clamps detects when they do not grip the sheet correctly. If this is the case, the machine table, including sheet, moves.
Smart unload
If a finished part does not fall through the part removal flap as expected, a sensor detects this and the error can be rectified quickly.
Sheet format recognition
Following the loading operation, the sheet format recognition function automatically compares the actual and target formats, thereby increasing process reliability.
Tools
Ball deburring tool
Deburr geometries of different sizes directly on the machine. As such, you benefit from perfectly deburred workpieces and shorter production times.
Size 5 cup tool (active die)
As a result of the special tool design, with the size 5 cup tool for the active die, you can achieve form sizes that were previously not possible. In just one stroke, a diameter of 2.2 in. and a forming height of 0.4 in. are easily possible.
Marking tool from below
Save time by marking parts on the machine from below. The plastic ball roller of the punch gently counters the sheet, meaning there are no imprints or scratches.
Punching tools at a glance
TRUMPF offers the world's largest range of punching tools on the market. You will find the perfect solution for every punching and forming Application.
Automation
Loading, unloading, and sorting

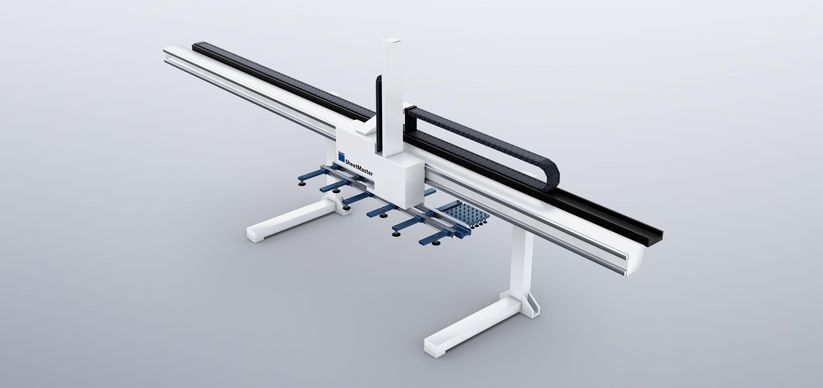

The SheetMaster guarantees fast and process-reliable loading, unloading, unstacking, and sorting.
