TruTool N 1000

Powerful heavy-duty machine

The TruTool N 1000 has been specifically designed for use with thick sheets. It is well-suited in particular to use for dismantling tanks and containers. It cuts through doubled sheets as well as bends of up to 90°. You can use the TruTool N 1000 for nibbling through sheet thicknesses of up to 0.4 in. without feed force. It offers non-fatigue operation despite a machine weight of 32.4 lbs. The handle can be rotated through 180°, providing perfect guidance of the machine.





Category:

Product description

Perfect cuts with 2-speed motor
Choose the right speed for the material thickness, strength, and type of workpiece.
4 cutting directions
The machine can be turned through 360° in 4 steps of 90°.
Rectangular punch with flexibility for profiles
Ideal for work in hard-to-reach areas, for cuts across edges and weld seams.
A powerful 2600 watts
Powerful motor and sophisticated gear technology. For outstanding ability to handle continuous loads.

Scope of delivery

TruTool N 1000, Stempel Standard
Standard punch
1 unti 2260113
TruTool N 1000, Matrize 10
Die 10 (integrated)
1 unti 1884904
Handle
1 unti 0103555
Allen key DIN 911-12
1 unti 0067920
Tube of grease "S1", 25 g
1 unti 0121486
Tube of grease "S1", 250 g
1 unti 0385478
Punching and nibbling oil for steel, 500 ml
1 unti 0103387
Setting gauge
1 unti 1411767
Case
1 unit case 2277078

Accessories

TruTool N 1000, standard punch
STANDARD PUNCH

For processing aluminum and mild steel 400 N/mm2

1 unit 2260113
Set of 2 1264155
Set of 5 1264156

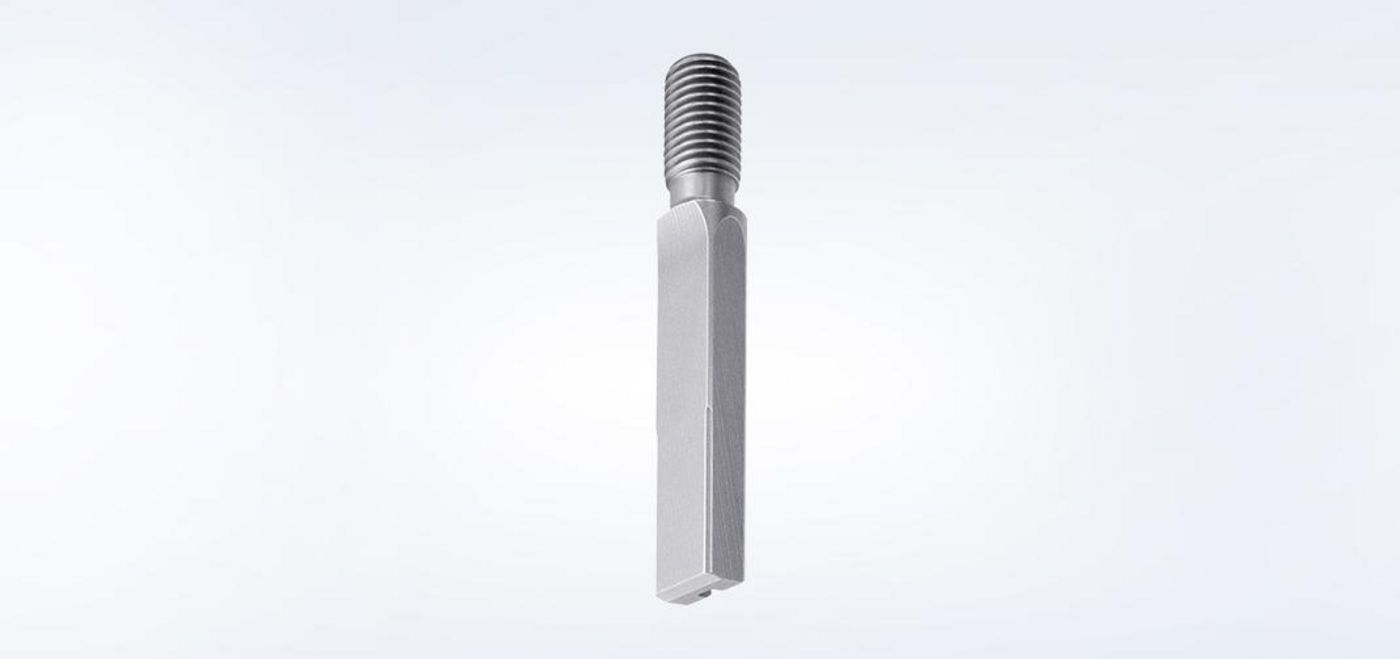

TruTool N 1000, punch CR
PUNCH CR

For processing stainless steel 600 N/mm2 and 800 N/mm2

1 unit 2260114
Set of 2 1264412
Set of 5 1264413

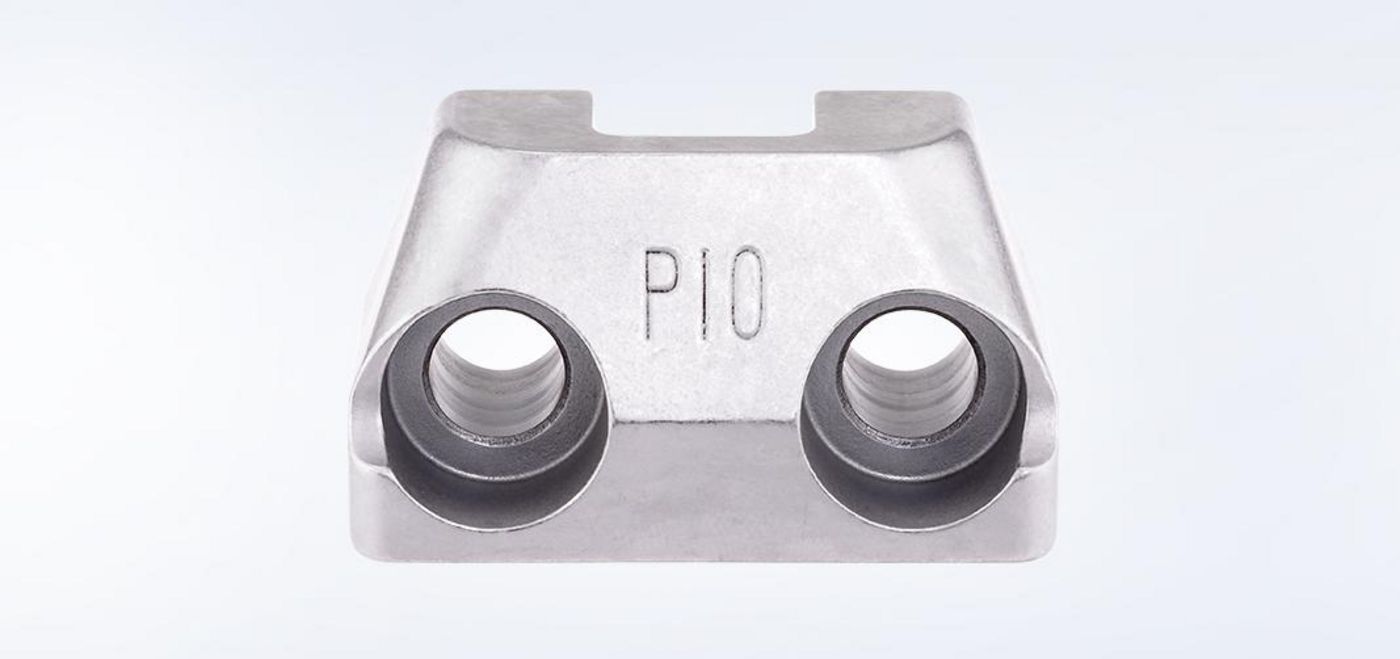

TruTool N 1000, die P10
DIE P10

Well-suited for processing profile sheets from 7 - 10 mm

1 unit 1884903
Set of 2 1264185

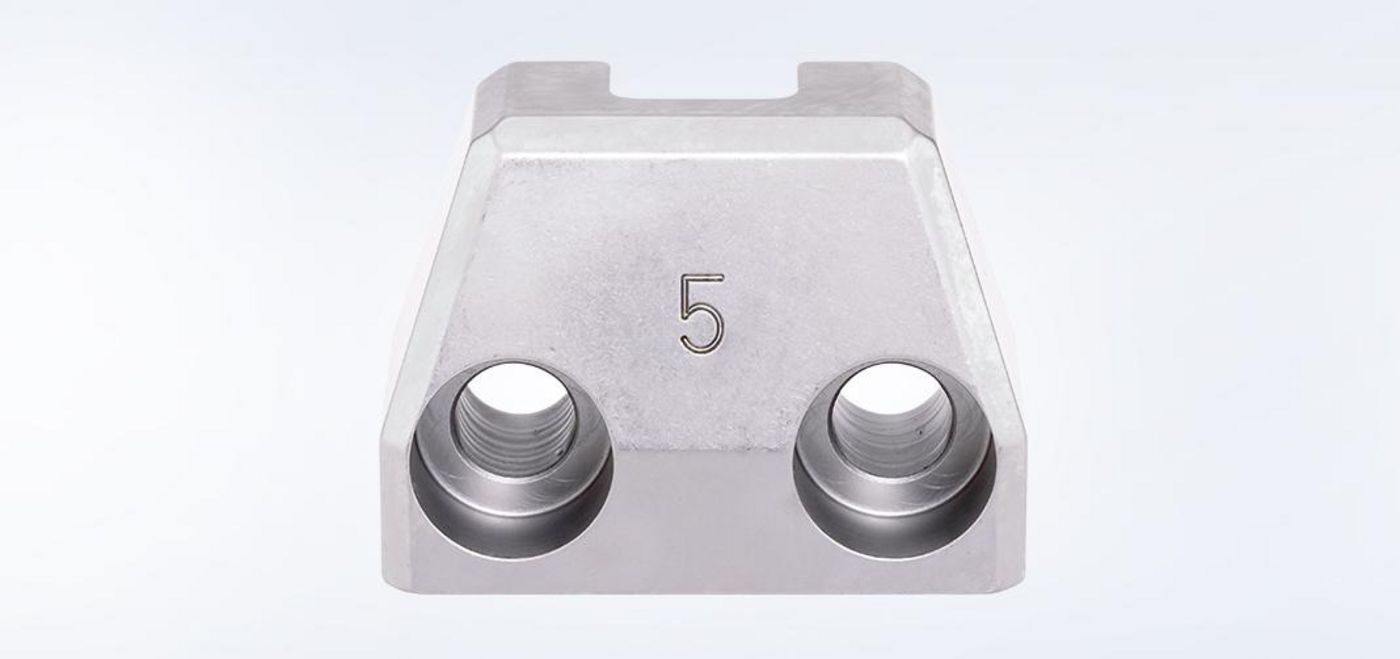

TruTool N 1000, die No. 5
DIE NO. 5

For processing aluminum, mild steel, and stainless steel 800 N/mm2 up to 5 mm

1 unit 1884909
TruTool N 1000, die No. 7
DIE NO. 7

For processing aluminum, mild steel, and stainless steel 600 N/mm2 from 5 - 7 mm

1 unit 1884905
Set of 2 1264184
TruTool N 1000, die No. 10
DIE NO. 10

For processing aluminum and mild steel from 7 - 10 mm

1 unit 1884904
Set of 2 1264177
TruTool N 1000, punch guide
PUNCH GUIDE

1 unit 1884906
Set of 2 1264368
Still image of accessories
WEARING PLATE

Protects the die holder against excessive wear

Set of 2 1264375
Set of 5 1264376
TruTool N1000, chip bag
CHIP BAG

To collect chips

1 unit 115215
Still image of accessories
PUNCHING AND NIBBLING OIL FOR STEEL

500 ml 103387
Still image of accessories
PUNCHING AND NIBBLING OIL FOR ALUMINUM

1000 ml 125874
Case
CASE

1 unit 121585

Technical data
