TruTool C 160 with chip clipper

The handy chip clipper option

The TruTool C 160 with integrated chip clipper for two-handed operation is ideal for notching and interior cutouts up to 0.06 inches in mild steel and 0.05 inches in stainless steel. It enables you to clip chips at any point. The machine can be easily removed from the workpiece and re-positioned accurately. A clear view of the workpiece makes your work easier and results in high-quality and distortion-free cuts.

Category: Platesaks

Product description

Chip cutter for two-handed operation

The chips are clipped with a three-quarter clockwise turn by means of a lever.

For interior cutouts and notches

You can cut chips at any time and pull the machine out of the workpiece.

Particularly lightweight and ergonomic

The light weight of the machine and the well-engineered ergonomics mean low fatigue levels during operation.

For any application

For perfect results, you can choose between 4 different cutters.

TruTool C 160 with chip clipper, dimensional drawing

Outstanding service life

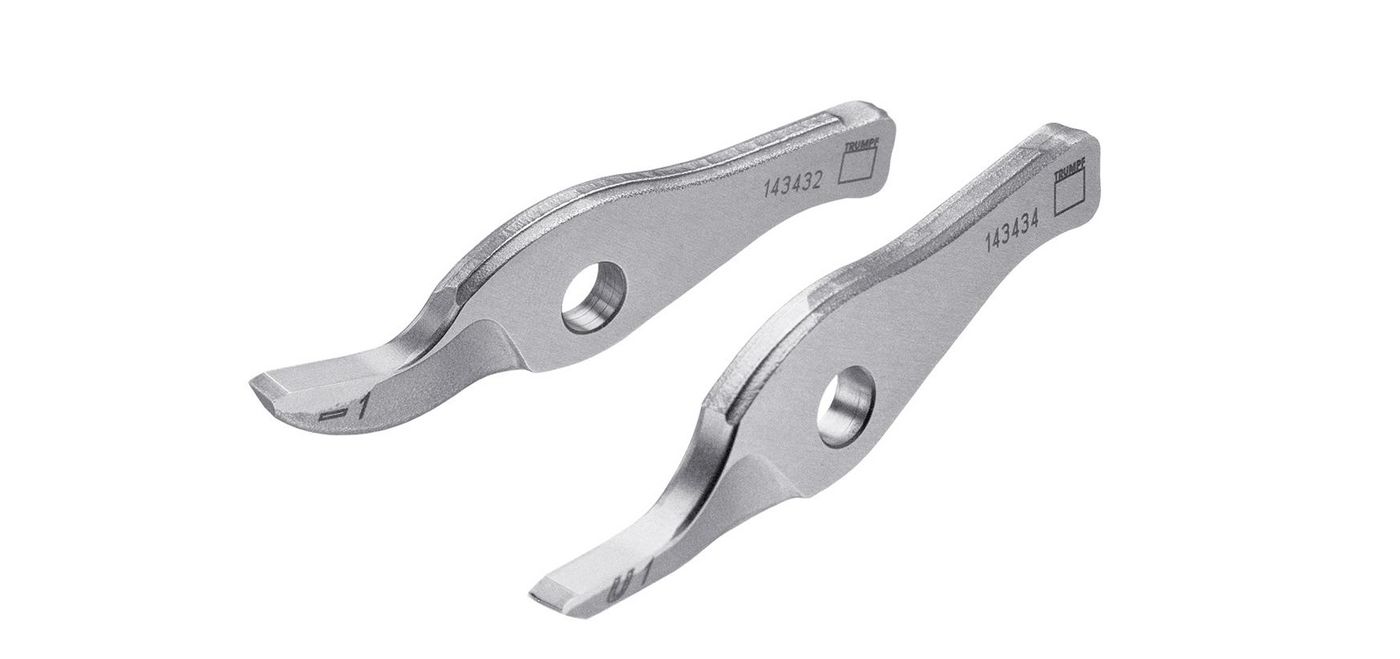

We offer 4 different cutters to suit particular applications: The CR cutter is ideal for processing stainless steel. The curve cutter cuts with excellent contouring. There are two different cutters for straight cuts: one cutter for processing thin sheets of up to 0.04 inches and one for use on sheet thicknesses of 0.04 – 0.06 inches.

Technical data

	TruTool C 160 with chip clipper
Maximum sheet thicknesses
Maximum sheet thickness, steel up to 400 N/mm²	1.6 mm
Maximum sheet thickness, steel up to 600 N/mm²	1.2 mm
Maximum sheet thickness, aluminum up to 250 N/mm²	2 mm
Radii
Smallest radius	90 mm
General
Working Speed	6 m/min - 10 m/min
Stroke rate with nominal load	3800 RPM
Starting hole diameter	15 mm
Nominal power consumption	350 W
