TruTool C 250 with chip clipper

Unbeatable and powerful

The TruTool C 250 provides unmatchable performance. It cuts sheet thicknesses of 0.1 in. in mild steel and 0.06 in. in stainless steel. It offers a unique added benefit in the form of the integrated chip clipper, which can be operated with one hand. This enables you to cut chips with one hand at any time and pull the machine out of the workpiece. The easily visible marks on the cutting head mean that you can re-position the machine accurately at any time. The TruTool C 250 offers an impressive top cutting speed of up to 10 feet per minute.

Kategori:

Produktbeskrivelse

Chip clipper for single-handed operation

Chips can be easily cut with one hand at the touch of a button without difficulty.

Extremely powerful
The most powerful model of its class. For mild steel of up to 0.1 in. and stainless steel of up to 0.06 in.
For interior cutouts and notches
You can cut chips at any time and pull the machine out of the workpiece.
For any application
For perfect results, you can choose between 5 different cutters.





Dimensional drawing, TruTool C 250

TruTool C 250 with chip clipper, dimensional drawing













Outstanding service life

We offer 5 different cutters: The CR cutter is ideal for processing stainless steel. The curve cutter cuts with excellent contouring. The spiral cutter is ideal for spiral ducts and cuts even sheet thicknesses of up to 0.14 in. quickly. There are two different cutters for straight cuts: one cutter for processing thin sheets of up to 0.06 in. and one for use in sheet thicknesses of 0.06 – 0.01 in.











Technical data

TruTool C 250 with chip clipper
Maximum sheet thicknesses
Maximum sheet thickness, steel up to 400 N/mm²2.5 mm
Maximum sheet thickness, aluminum up to 250 N/mm²3 mm
Spiral duct steel 400 N/mm²4x 0,9 / 6 x 0,6 mm
Spiral duct steel 600 N/mm²4x 0,6 mm
Radii
Smallest radius150 mm
General
Working Speed3 m/min - 10 m/min
Stroke rate with nominal load2400 RPM
Starting hole diameter22 mm
Nominal power consumption550 W

Scope of delivery



The following consumables and the corresponding accessories are included in the scope of delivery.


TruTool C 250, Messer Gerade 1,5 - 2,5 mm
Straight cutter (integrated)
0.06 - 0.1 in
TruTool C 250, Schneidleistensatz
Cutting strips, 2 units with screws (integrated)
Set of 2 1275275
TRUMPF Box S1
TRUMPF Box S1
1 unit 1763681

Accessories



Find the right consumables and accessories for your machine here.


TruTool C 250, straight cutter 1.5 - 2.5 mm
Straight cutter 1.5 - 2.5 mm
Ideal for sheet thicknesses 1.5 - 2.5 mm
Set of 2 1279105
Set of 5 1279106
TruTool C 250, straight cutter 0.5 - 1.5 mm
Straight cutter 0.5 - 1.5 m
Ideal for sheet thicknesses 0.5 - 1.5 mm
Set of 2 1279107
Set of 5 1279108
TruTool C 250, cutter SC
Cutter SC
Ideal for spiral ducts up to 4 x 0.9 mm
Set of 2 1279109
Set of 5 1279110
TruTool C 250, cutting strip set
Cutting strip set
2 units with screws
Set of 1 1275275

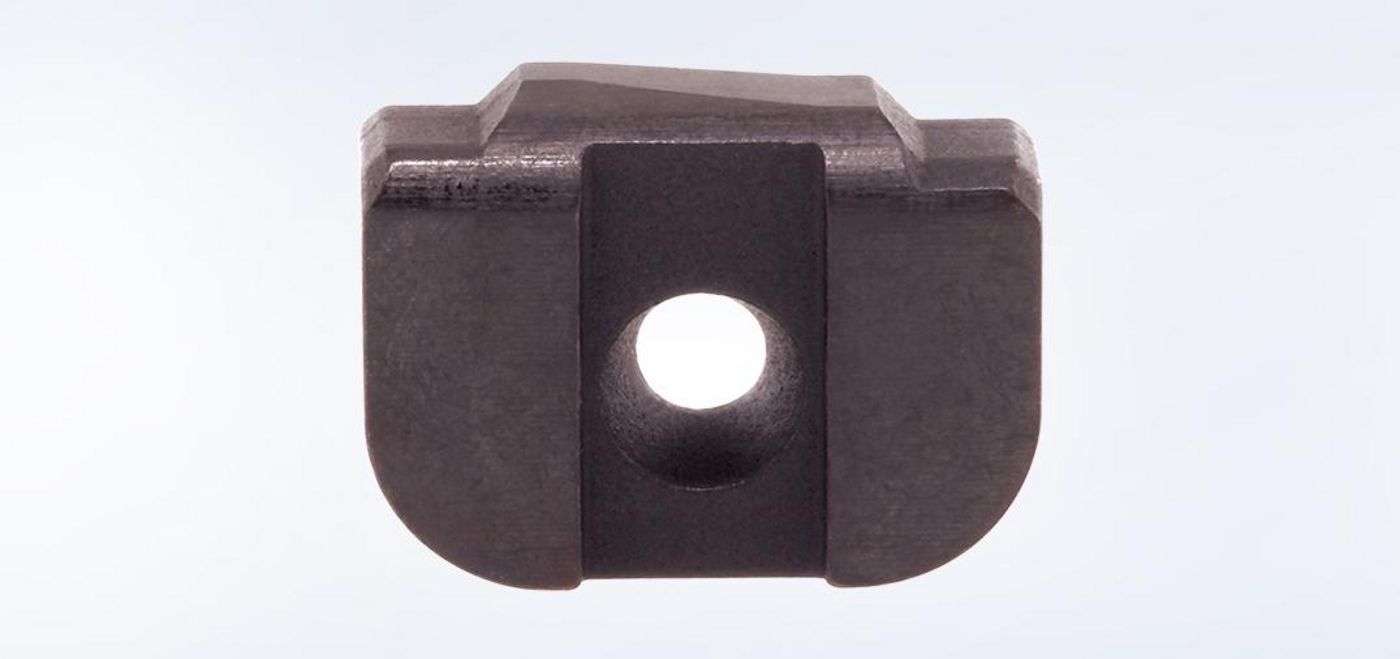

TruTool C 250, cutter plate
Cutter plate
1 unit 1267770
Torx screwdriver
Torx screwdriver
With T-handle TX20
1 unit 1775531
TRUMPF Box S1
1 unit 1763681
