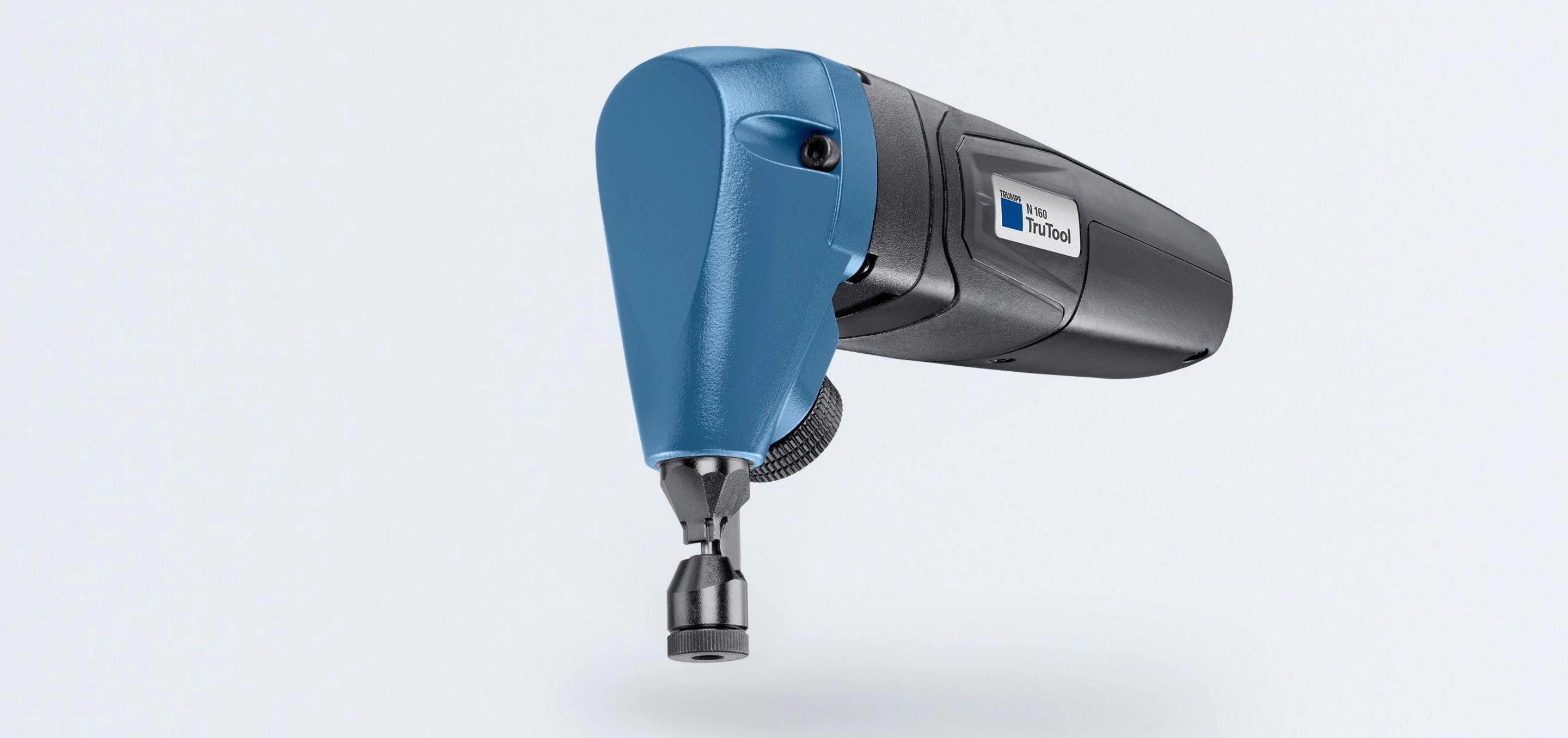

TruTool N 160

Attractive starter model

Whether it’s flat sheets or corrugated sheets, the compact TruTool N 160 nibbler cuts sheet steel up to 1.6 mm thick extremely quickly and precisely without any flying sparks. The cuts produced have no distortion or corrosion. You can also use the optional extension to easily extend the range of applications at any time, including the processing of deep profiles. The ergonomic design, low weight of the machine, and soft grip all ensure that the machine is very easy to use.





Kategori:

Produktbeskrivelse

Attractive starter model
The TruTool N 160 stands out with its impressive price-performance ratio.
Compact, lightweight, and ergonomic
The TruTool N 160 fits comfortably in your hand with its weight of 1.5 kg and an optimal grip circumference.
For optimum performance on curves
The cutting tool can be rotated in 8 steps of 45° without tools.
Change without tools
You can change dies and punches quickly without additional tools.
Long service life
The rotating punch reduces wear by ensuring the tool wears down evenly.
Ergonomic design: the soft grip
The soft grip minimizes vibrations and means you can work without getting tired.











Technical data


MAXIMUM SHEET THICKNESSES
MAXIMUM SHEET THICKNESS, STEEL 400 N/MM²1.6 mm
MAXIMUM SHEET THICKNESS, STEEL 600 N/MM²1 mm
MAXIMUM SHEET THICKNESS, STEEL 800 N/MM²0.7 mm
MAXIMUM SHEET THICKNESS, ALUMINUM UP TO 250 N/MM²2 mm
RADII
SMALLEST RADIUS24 mm
GENERAL
WORKING SPEED2.4 m/min
STROKE RATE AT NOMINAL LOAD2070 1/min
STARTING HOLE DIAMETER22 mm
NOMINAL INPUT POWER350 W
WEIGHT
WEIGHT WITHOUT CABLE1.5 kg


Scope of delivery

The following consumables and the corresponding accessories are included in the scope of delivery.


TruTool N 160, Stempel
Punch (integrated)
1 unit 2260177

TruTool N 160, Matrize
Die (integrated)
1 unit 2260178



Accessories



Find the right consumables and accessories for your machine here.


TruTool N 160, punch
Punch
1 unit 2260177
Set of 5 1264083
Set of 10 1264084
TruTool N 160, die
Die
For processing steel 400 N/mm2 with sheet thickness 1 - 1.6 mm
Set of 10 1264111
1 unit 2260178
Set of 2 2260560
Set of 5 1264088

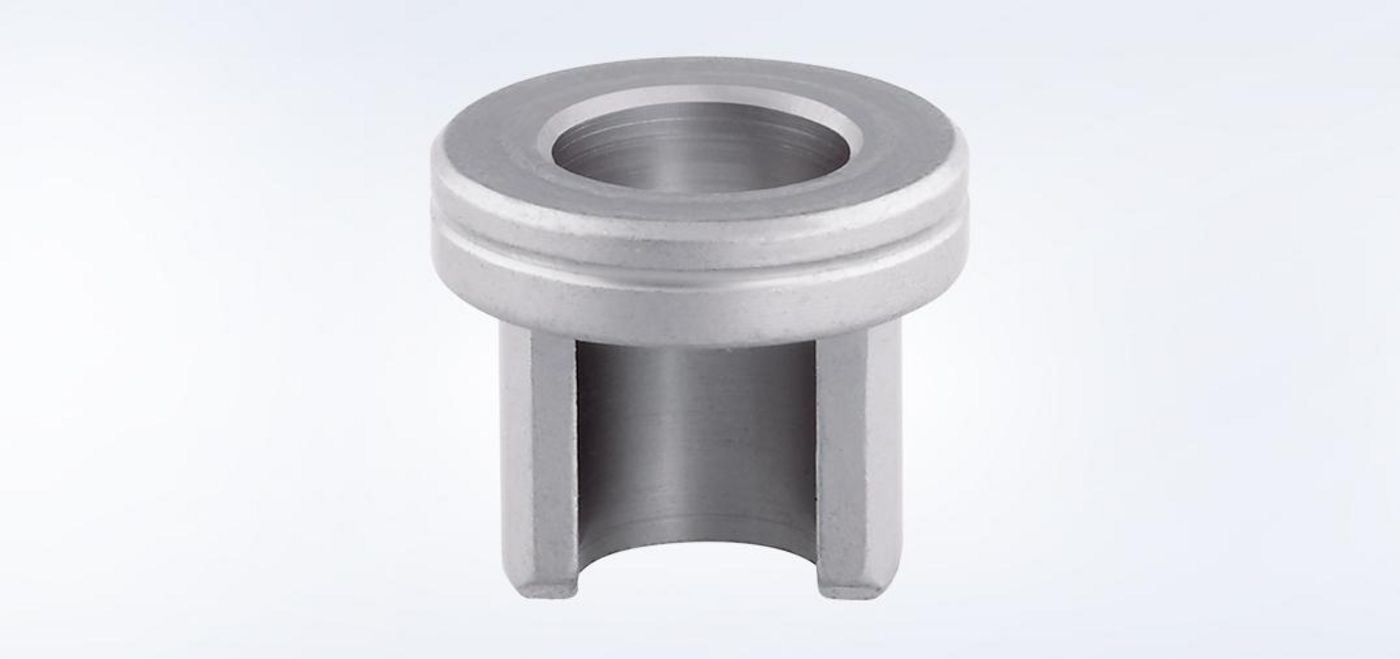

TruTool N 160, thin-sheet die
Thin-sheet die
Up to sheet thickness 1 mm
Set of 2 1264396
1 unit 2260179
TruTool N160, punch set
Set
2 x punch and 1 x die
Set of 1 141723
TruTool N 160, extension
Extension
For profile sheets with a narrow profile opening
1 unit 950316
