TruTool N 350

Easy operation

The TruTool N 350 is a compact and handy machine for sheet thicknesses of up to 0.14 inches in mild steel and 0.1 inches in high-tensile steel. You can rotate the machine on the spot as it features a hollow round punch. This makes it ideal for interior cutouts and notches. The perfect grip ergonomics ensure easy operation



Kategori:

Produktbeskrivelse

Powerful motor
Powerful 1400 watt motor with electronic overload protection and starting current limitation.

Change without tools
You can change dies and punches quickly without additional tools.

Perfect machine guidance
The ergonomic handle and optimal grip circumference mean that you work comfortably and efficiently.

Variable speed
You can use the speed controller to adjust the working speed to suit the individual cutting task.



Ideal for processing stainless steel up to 0.07 inches

TruTool N 350, CR die and CR punch



The CR punch specifically designed for this application, with the corresponding die, is ideal for processing high-tensile sheets.











Electro variable speed control

Variable speed

The speed control is highly efficient for work with scribed lines or with a template. It is also an excellent choice for frequent processing of radii and stainless steel. You can adapt the working speed to the cutting task and the electronic overload protection offers yet another notable benefit. It has a protective effect on the motor.



Technical data

Scope of delivery



The following consumables and the corresponding accessories are included in the scope of delivery.

TruTool N350, Stempel
Standard punch (integrated)
1 unit 2260195
TruTool N350, Matrize
Standard die (integrated)
1 unit 2260192
Zubehör Standbild

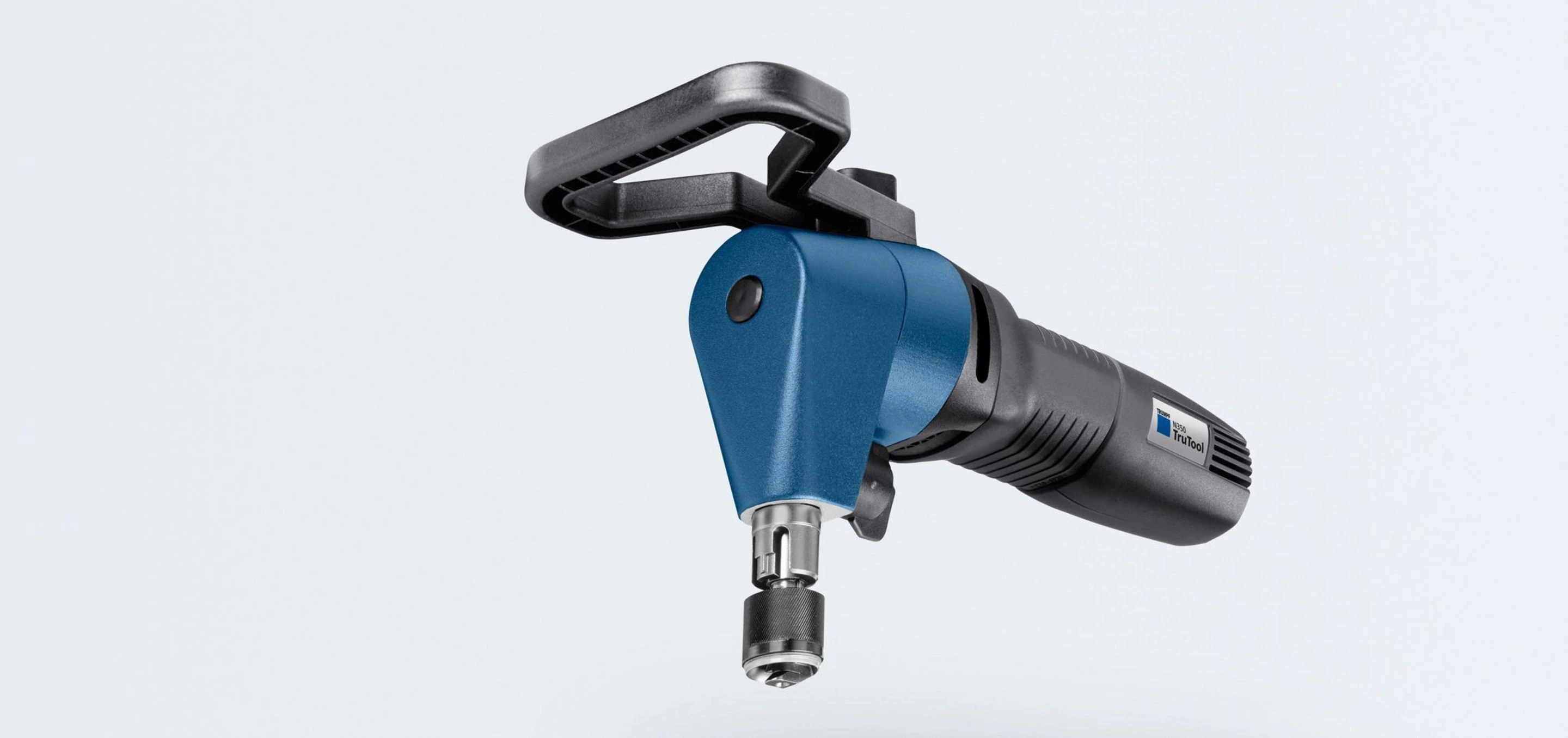

TruTool N 350 handle
1 unit 0974659
Zubehör Standbild
Tube of grease "G1", 0.88 oz
1 unit 0344969

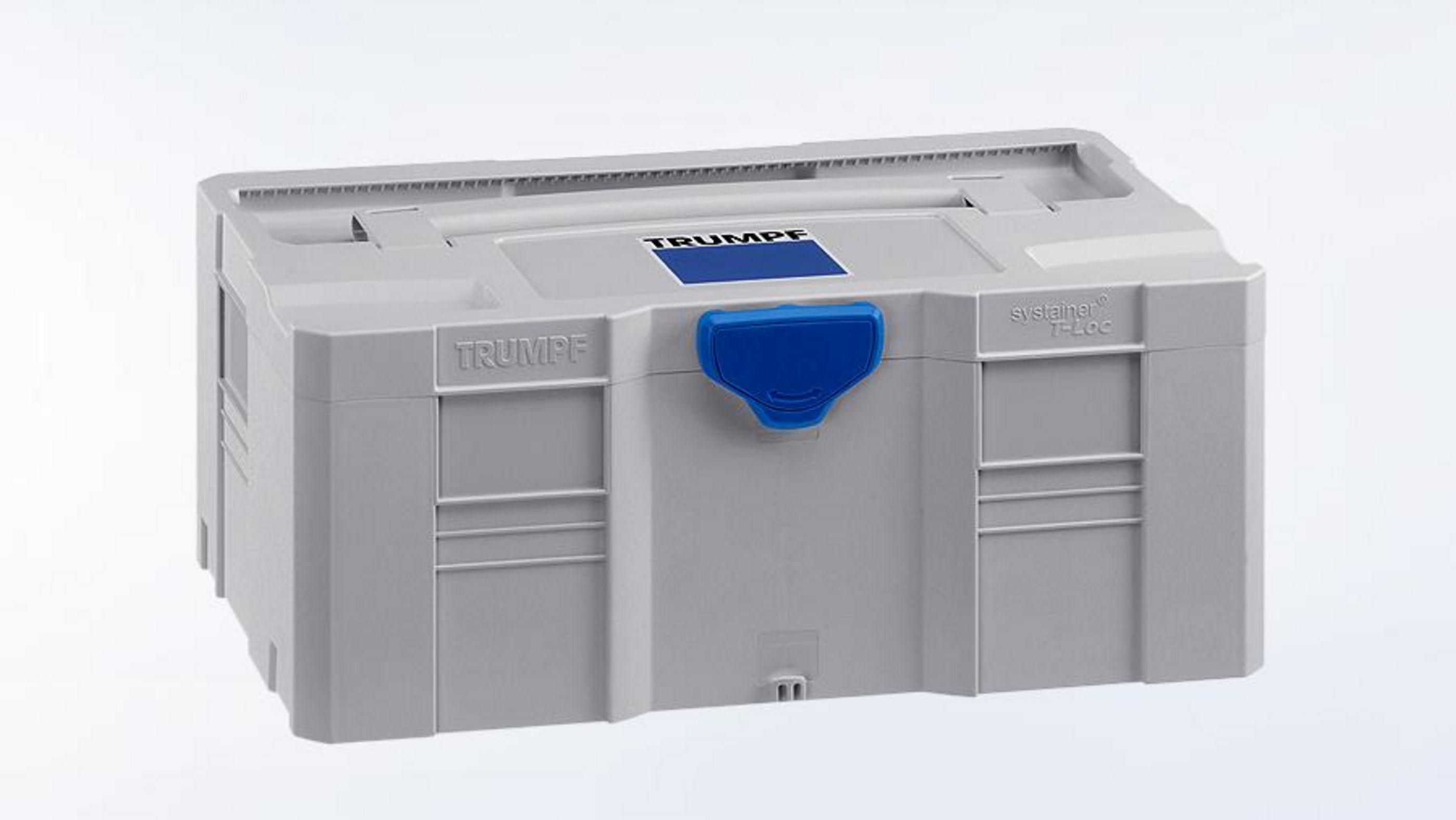

TRUMPF Box M3
TRUMPF Box M3
1 unit 1770951

Accessories

TruTool N350, punch
Punch
For mild steel up to 57,000
1 unit 2260195
Set of 2 1264151
Set of 5 1264152
TruTool N350, die
Die
For mild steel up to 400 N/mm2
1 unit 2260192
Set of 2 1264182
Set of 5 1264183
TruTool N350, punch
Punch CR
For high-tensile sheets up to 800 N/mm2
1 unit 2260196
Set of 2 1264181
TruTool N350, die
Die CR
For high-tensile sheets up to 800 N/mm2
1 unit 2260196
Set of 2 1264187
TruTool N350, (punch, die)
Set
2 x punch and 1 x die

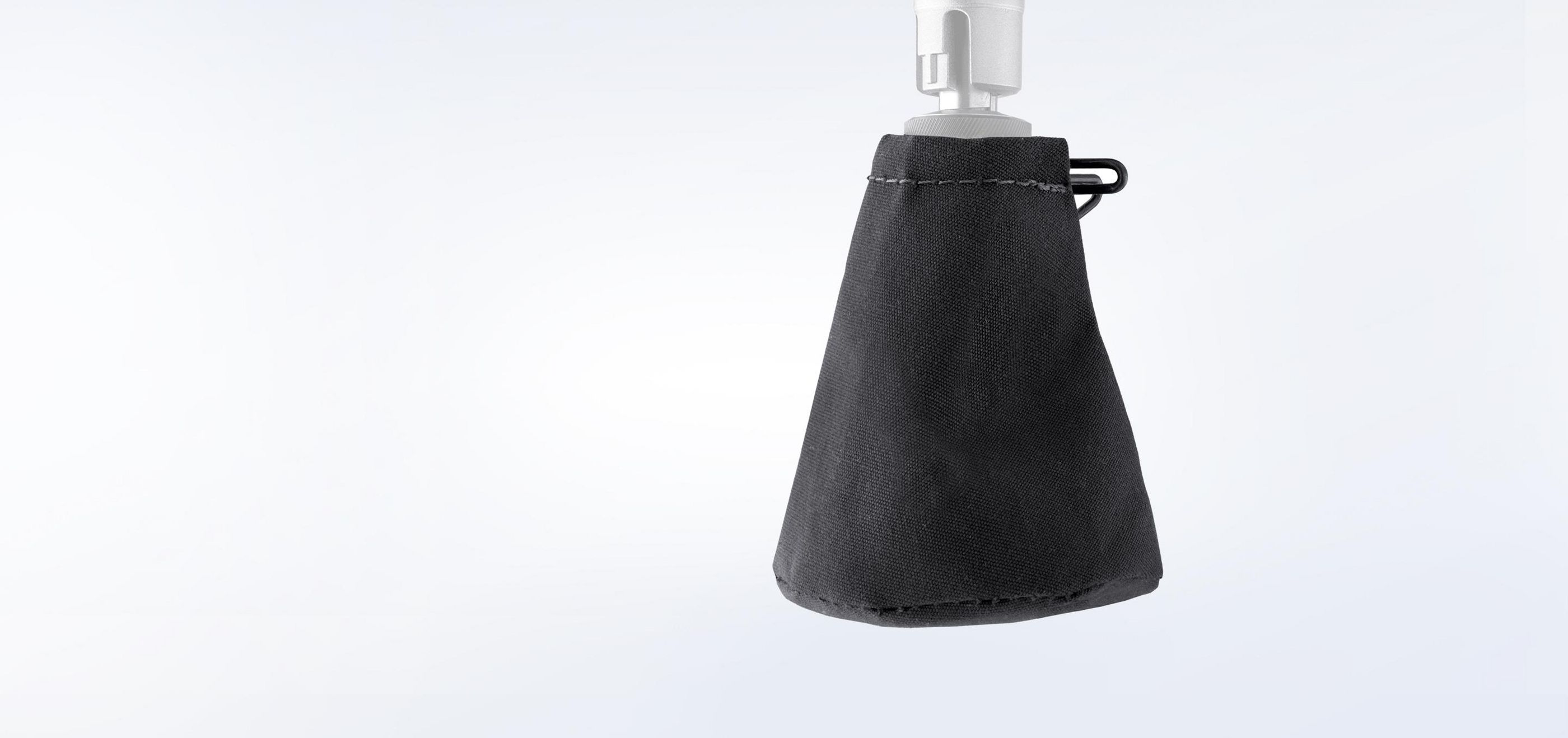

TruTool N 350, chip bag
Chip bag
1 unit 97210
Set (2x punch, 1x die)
Still image of accessories
Punching and nibbling oil for steel
500 ml bottle 103387
Still image of accessories
Punching and nibbling oil for aluminum
1,000 ml bottle 125874
Still image of accessories
Suspension eyelet
1 unit 97208
TruTool N 350, spacer sleeve
Spacer sleeve
For sheets up to 2 mm
1 unit 110104

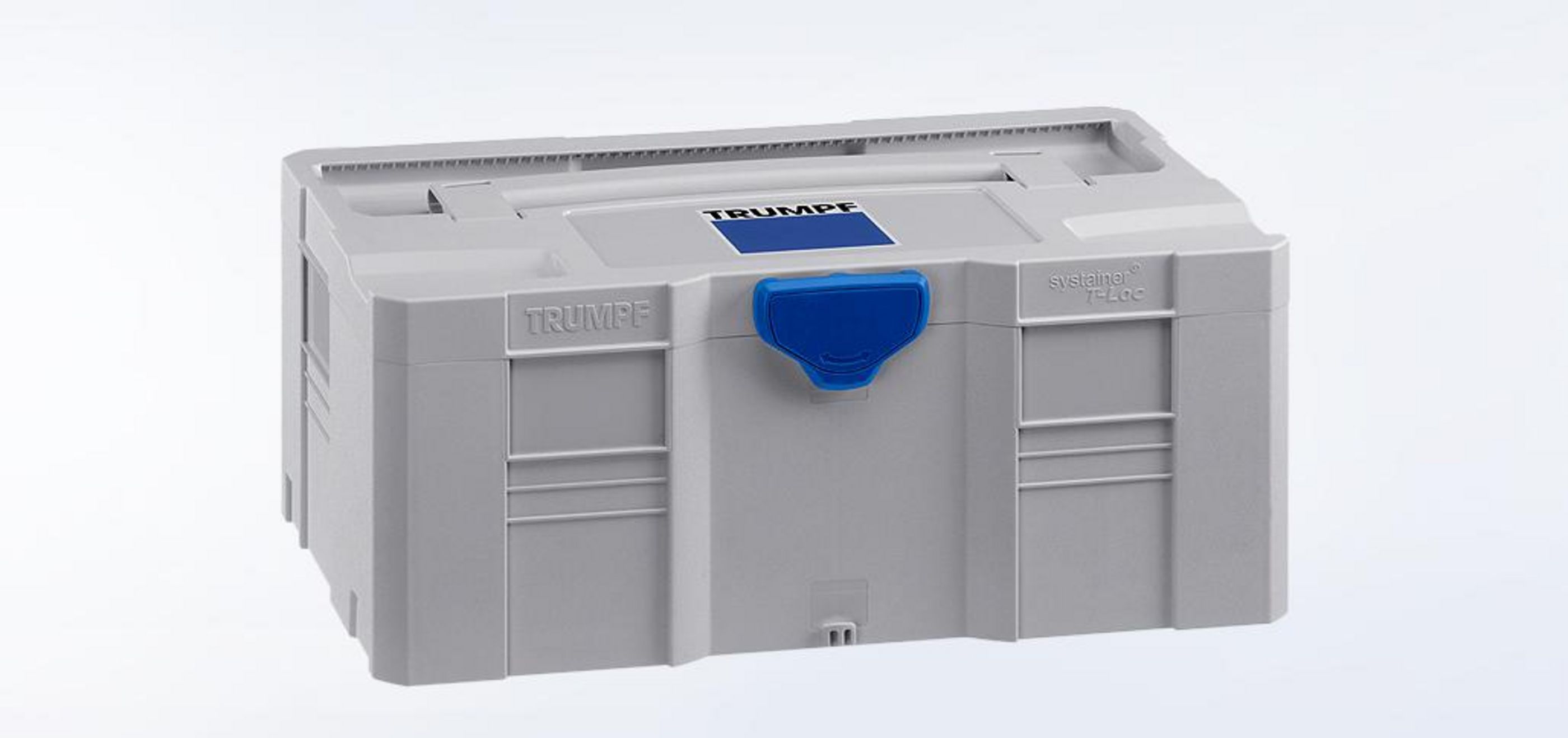

TRUMPF Box M3
TRUMPF Box M3
