TruTool S 114 12V LiHD rechargeable battery

Short and flush cutting

The 12V rechargeable battery machine cuts ventilation ducts flush with walls and ceilings effortlessly, precisely and with a minimal obstruction of 30 mm. The TruTool S 114 can be easily rotated and delivers an outstanding cut quality, even when cutting spiral ducts. The 4.0 Ah / 12V LiHD rechargeable battery also ensures long runtimes.



Product description

Just right
Compact and practical 12V rechargeable battery. Compatible in its voltage class and with the 12V-36V recharger.
Brushless motor
Practically unlimited service life, virtually wear-free and hardly any maintenance. Battery performance per charge is also increased.
For even greater use
The TruTool S 114 is perfect for trimming and cutting C, L, and U profiles.
2-sided multi-edge cutter
The cutters can be interchanged with each other, thus doubling the service life.

Technical data

Scope of delivery

The following consumables and the corresponding accessories are included in the scope of delivery.

TruTool S 114, Messer
Cutter
Integrated
Zubehör Standbild
Hexagonal bar wrench TX 20
1 unit 1775531
TruTool Li-ion rechargeable battery 10.8 V, 2 Ah
12V LiHD 4.0 Ah rechargeable battery (2 units)
1 unti 2598770
TruTool charger 100 - 240 V
12V-36V recharger LG
1 unit, DE/CH version: 2569784

TruTool belt clip
Belt clip
1 unti 2579850
TRUMPF Box S1
TRUMPF Box S1
1 unit 1763681

Accessories

Find the right consumables and accessories for your machine here.

TruTool S 114, cutter
Cutter
For steel up to 600 N/mm2
Set of 2 1376494
TruTool Li-ion rechargeable battery 10.8 V, 2 Ah
12V LiHD 4.0 Ah rechargeable battery (2 units)
1 unti 2598770
TruTool charger 100 - 240 V
12V-36V recharger LG
1 unit, DE/CH version: 2569784
TruTool belt clip
Belt clip
1 unti 2579850
TRUMPF Box S1
1 unit 1763681

Customer benefits

Power-Head Technology

The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.


Brushless motor

The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This positively affects battery performance and means you get the maximum from every battery charge. A further advantage is the practically limitless service life of a BL motor due to the absence of carbon brushes and therefore no mechanical wear. This means almost wear-free and maintenance-free motors.


Compact, lightweight, and compatible

Small and handy

The 12V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.

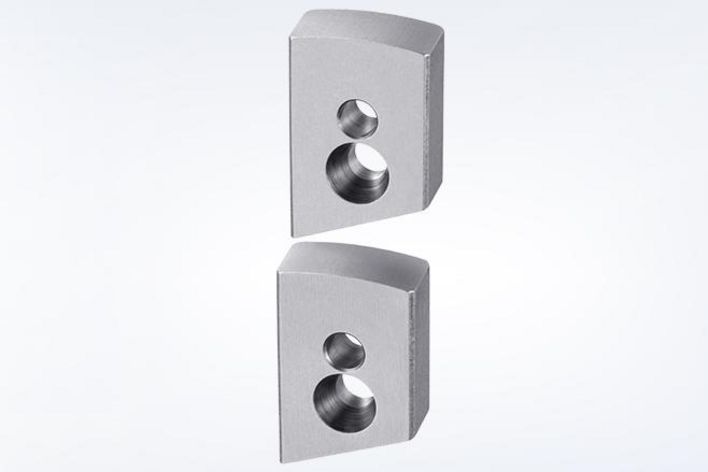

TruTool S 114, cutter

2-sided multi-edge cutter

The TruTool S 114 requires two cutters for the cutting process. The top cutter always has the cutting function. As soon as it becomes blunt, you can easily swap the cutters with one another. This doubles the service life and work can be quickly resumed.

Optimal working speed

Optimal working speed

You can use the speed control to adjust the working speed to suit the individual cutting task. This provides a variable cutting speed of up to 29.5 feet per minute. The speed control is highly efficient for work with scribed lines or with a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.
