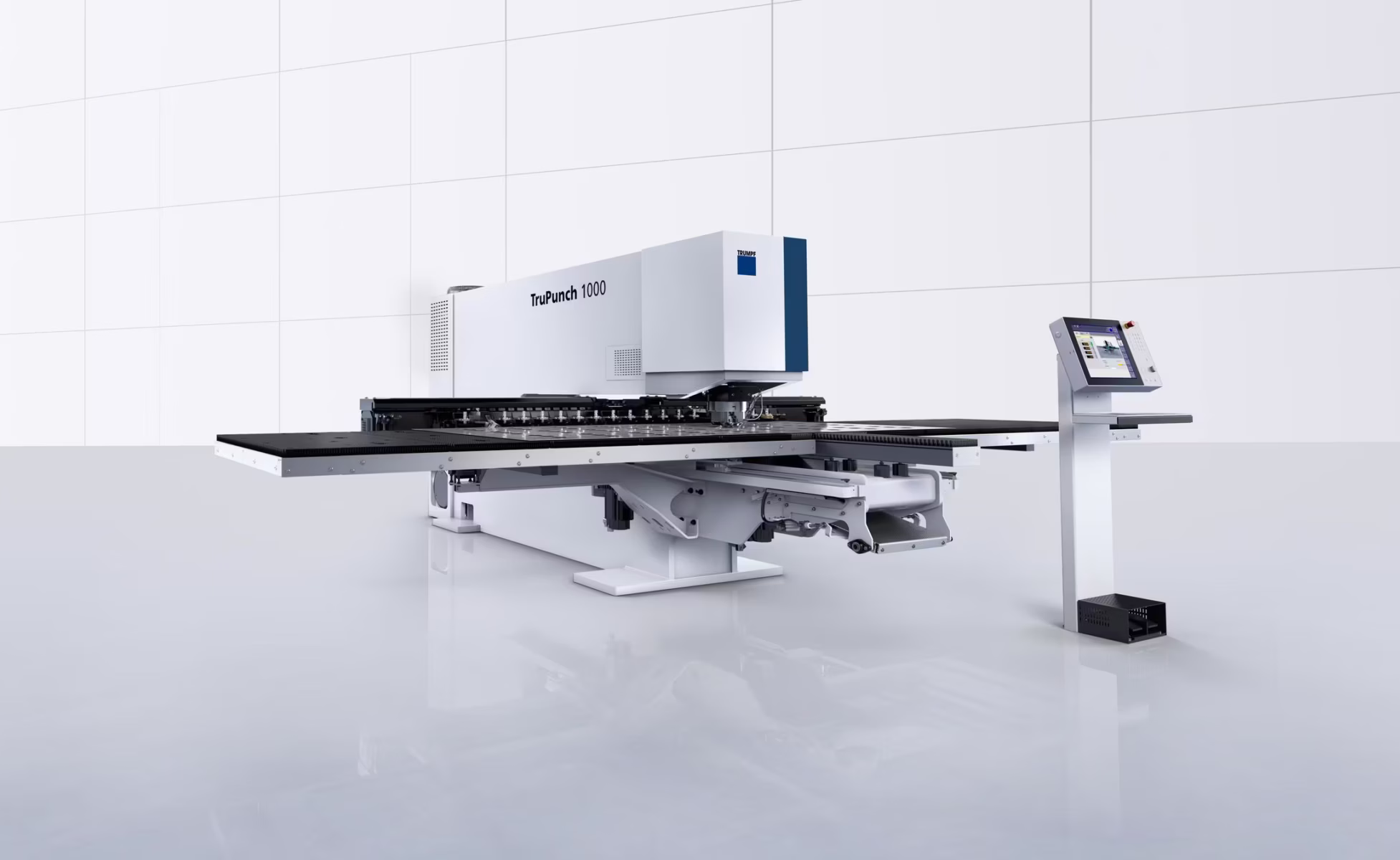

TruPunch 1000

Perfekt for små serier og enkle platedeler – kompakt, brukervennlig og kostnadseffektiv

TruPunch 1000 er det perfekte inngangsnivået til profesjonell stansing. Den kompakte maskinen utmerker seg med høy prosesseringsfleksibilitet: I tillegg til selve stansingen kan du også lage gjenger, forme ekstruderinger og bøye flenser. Du kan bearbeide mellomstore plater komplett i ett og samme verktøyoppsett, uten omposisjonering. Selv mindre ordre og seriestørrelser kan produseres økonomisk, raskt og fleksibelt.

Klar for en rekke bruksområder

TruPunch 1000 dekker alle sentrale bruksområder for en TRUMPF stansemaskin.

Flerfunksjonelle verktøy

TRUMPF tilbyr stanseverktøy i topp kvalitet, som MultiTool og slisseverktøyet MultiShear.

Enkel betjening

Den intuitive styringen muliggjør umiddelbar produksjon av både enkle og komplekse deler.

Tilgjengelig i følgende modeller:

TruPunch 1000 (S05) small formatTruPunch 1000 (S05) medium format

Teknisk datablad

Motta tekniske data for alle produktversjoner som PDF

Be om teknisk datablad

Workpiece

With the largest tool range in the world, the machine offers the highest level of processing flexibility. For this workpiece, the following tools were used: beading roller tool, MultiCut tool, cup tool, and offsetting roller tool.

Electronic component

Produce with flexibility using tools for every application, for example, flanges, cups, roller folding. For this component, the following tools were used: stepping tool, bracket tool, cup tool rectangular and round, offsetting roller tool, and pinching roller tool.

TruTops Boost

Construct and program your laser, punching, and combined punch laser machines intelligently with TruTops Boost, your all-in-one 3D solution.

Software

The software portfolio from TRUMPF optimizes your entire production process – from the customer query through to delivery of the finished part.

Table equipment

Brush tables are available for gentle material handling.

On-Demand Drive

As a result of the On-Demand Drive, the hydraulic punching head system always works to the optimum level. This leads to reduced noise generation during non-productive times and reduces the hydraulic load of the entire system.

Skeleton-free

TRUMPF is the first manufacturer worldwide to offer punching machines that feature skeleton-free processing. This innovation saves material and increases process safety.

Blank processing benefits package

With the blank processing package, you can also process blanks simply and in a process-reliable way. This is made possible by a second index pin and additional clamp, amongst other things.

Parts conveyor belt

With the parts conveyor belt, punching parts are ejected in a process-reliable way.

Touchpoint HMI

It can be very easy to program punching or punching-laser parts – machine operation becomes as intuitive as when using a tablet or smartphone with the new Touchpoint-HMI from TRUMPF. It helps you finish the part much more quickly – and even novices will quickly learn how to work with the software.

MultiTool

You can boost the productivity of your punching machine with a tool adapter for up to ten inserts – in particular for small punching operations.

MultiShear

Use our patented cutting technology for outstanding edge quality without nibbling marks. A die with brush inserts also prevents scratches.

With a length of up to 4 inches, you can take advantage of new sheet metal design options. Processing in just one stroke ensures the highest quality.

Louver tools size 5

Punching tools at a glance

TRUMPF offers the world's largest range of punching tools on the market. You will find the perfect solution for every punching and forming application.
